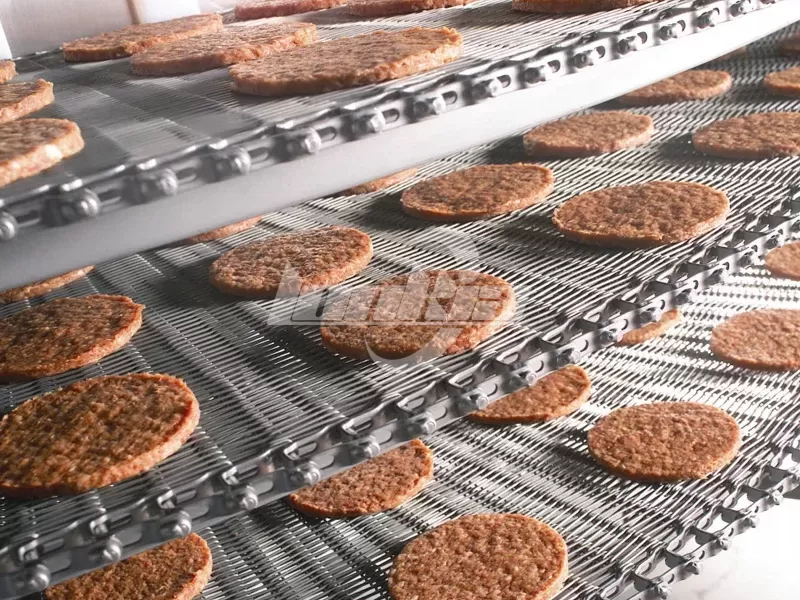

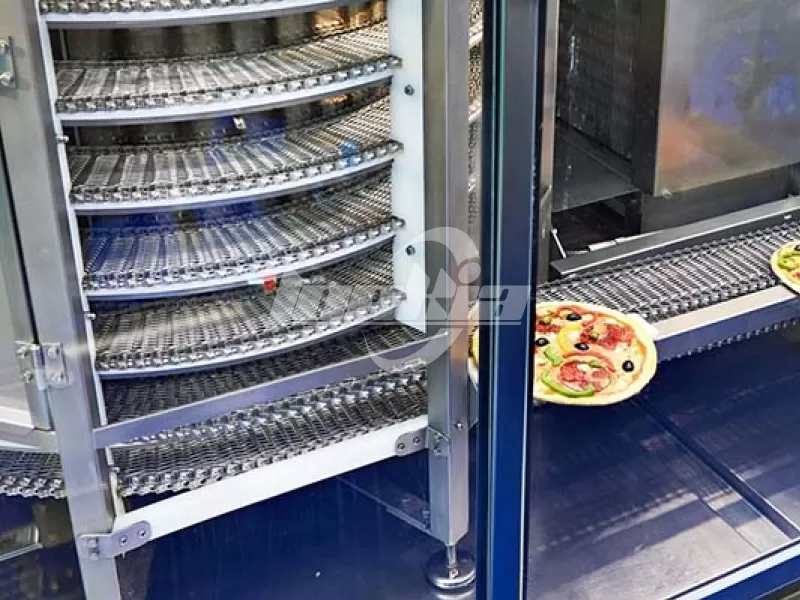

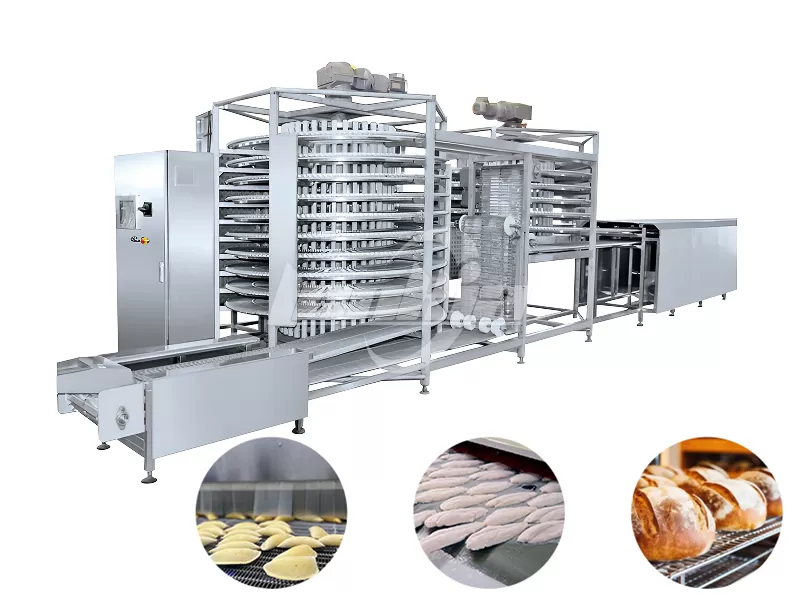

Learn MoreIQF Spiral Freezer
The spiral freezer is a high-efficiency continuous freezing machine widely used in meat, seafood, dough products, prepared foods, bakery products, and pet food industries. Through a spiral conveying system, it achieves a long freezing path within a compact footprint, allowing products to rapidly pass through the maximum ice crystal formation zone and preserve original quality and structure.
Overview
The spiral freezer adopts a continuous spiral conveyor belt structure, enabling high-capacity freezing within limited plant space. With features such as fast freezing speed, compact footprint, and high automation, it is ideal for medium to large food processing plants seeking standardized and large-scale freezing production.
Working principle
Products enter the spiral conveying system via the infeed conveyor and travel upward or downward along the spiral path under forced low-temperature airflow. Driven by fans, cold air circulates evenly and exchanges heat efficiently with the products, completing rapid freezing within the preset time.
Spiral Freezing Process
Products are pre-processed and evenly fed onto the infeed conveyor
Products enter the spiral conveying system
Rapid freezing occurs under low-temperature airflow
Products are automatically discharged after the preset freezing time
Products proceed to packaging or further processing
Parameter
Freezing capacity | 500–5000 kg/h (customizable) |
Freezing temperature | -35℃ to -40℃ |
Freezing time | 10–60 minutes (adjustable) |
Conveyor belt type | Food-grade stainless steel mesh belt |
Refrigeration system | Ammonia or Freon (optional) |
Control system | PLC + Touch Screen |
Power supply | 380V / 50Hz |
Note: Technical specifications may change without notice due to ongoing technological advancements.
Advantage
- Continuous Operation with High EfficiencyContinuous feeding and discharge design supports large-scale industrial production.
- Compact Footprint, High Space UtilizationThe spiral structure provides a longer freezing path within limited space.
- Uniform Freezing with Stable QualityUniform cold air circulation ensures consistent freezing quality.
- High Automation and Stable OperationPLC control enables precise operation and reduces labor costs.
Who Needs a Spiral Freezer
- Meat Processing PlantsFor rapid freezing of meat products, portioned meat, and marinated meat.
- Seafood Processing PlantsSuitable for freezing fish, shrimp, shellfish, and seafood products.
- Prepared Food ManufacturersMeets large-scale and standardized freezing requirements for prepared foods.
- Bakery & Dough Product ProducersFor rapid freezing of dough, pizza, pastries, and bakery products.
- Pet Food ManufacturersSuitable for pet treats and pre-freezing before freeze drying.
FAQ
- What products are suitable for spiral freezers?Suitable for block, slice, granular, and formed food products.
- What are the advantages compared to tunnel freezers?Smaller footprint and longer freezing path make it ideal for high-capacity applications.
- Is freezing capacity customizable?Yes, capacity can be customized according to output and product type.
- Is cleaning and maintenance easy?The machine supports CIP design for easy cleaning and maintenance.
- Can it integrate with other production lines?Yes, it can be integrated with cutting, packaging, and other processing lines.
